Quiz: Electrical Engineering 29 June 2021

Quiz Electrical Engineering
Exam: GATE
Topic: Miscellaneous
Date: 29/06/2021

Each Question carries 2 Mark
Negative Marking: 1/3
Time: 20 Minutes

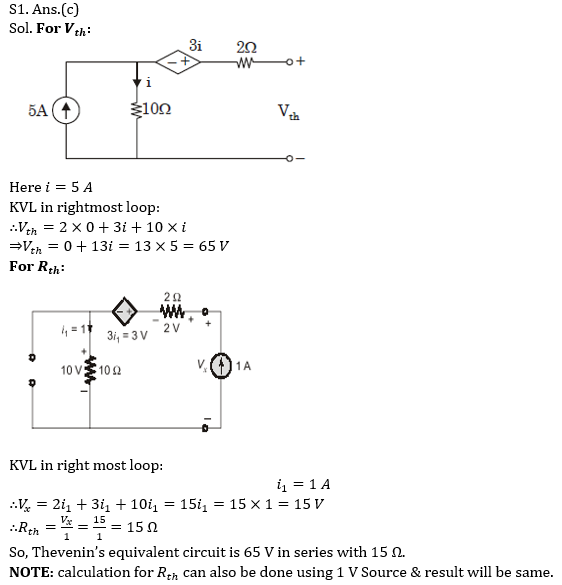

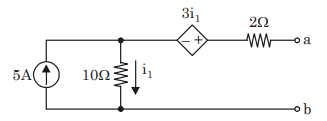

Q1. For the network shown, the equivalent Thevenin voltage and Thevenin impedance as seen across terminals ‘ab’ is

(a) 50 V in series with 2 Ω
(b) 10 V in series with 2 Ω
(c) 65 V in series with 15 Ω
(d) 10 V in series with 12 Ω

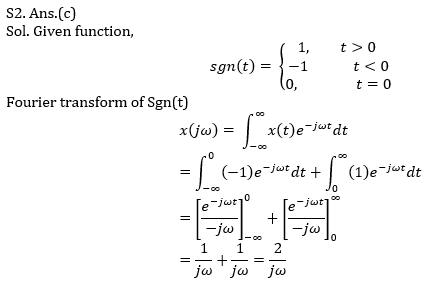

Q2. The Fourier transform of the signum function Sgn (t) defined in the figure is

(a) (-2)/jω
(b) 4/jω
(c) 2/jω
(d) 1/jω+1

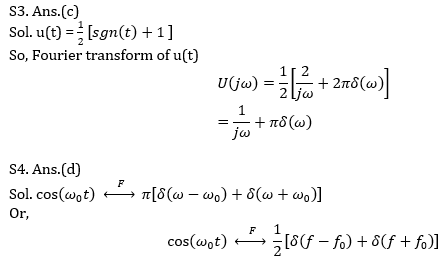

Q3. Which one of the following is the correct Fourier transform of the unit step signal?
u(t)=1 for t≥0
=0 for t≤0

(a) πδ(ω)
(b) 1/jω
(c) 1/jω+πδ(ω)
(d) 1/jω+2πδ(ω)

Q4. The Fourier transform of v(t) = cos ω0 t is given by
(a) V(f)=1/2 δ (f-f0 )
(b) V(f)=1/2 δ(f+f0 )
(c) V(f)=1/2 [δ(f-f0 )-δ(f+f0 )]
(d) V(f)=1/2 [δ(f-f0 )+δ(f+f0 )]

Q5. A 400V/100V, 10kVA two winding transformer is reconnected as an auto transformer across a suitable voltage source. The maximum rating of such an arrangement could be
(a) 50 kVA
(b) 15 kVA
(c) 12.5 kVA
(d) 8.75 kVA

Q6. A 10 kVA, 400 kVA/200 kVA, single – phase transformer with a percentage resistance of 3% and percentage reactance of 6% is supplying a current of 50A to a resistive load. The value of the load voltage is
(a) 194 V
(b) 390 V
(c) 192 V
(d) 196 V

Q7. The switch ‘S’ in the circuit has been opened since a very long time. The value of current through resistor R_1 Immediately after switch is closed will be –

(a) zero
(b) V\/R1
(c) V\/R2
(d) V/(R1+R2 )

Q8. In a transistor amplifier, the input resistance is 1KΩ, the collector load resistance is 2KΩ and the transistor β is 10. The voltage gain is
(a) 40
(b) 30
(c) 20
(d) 10

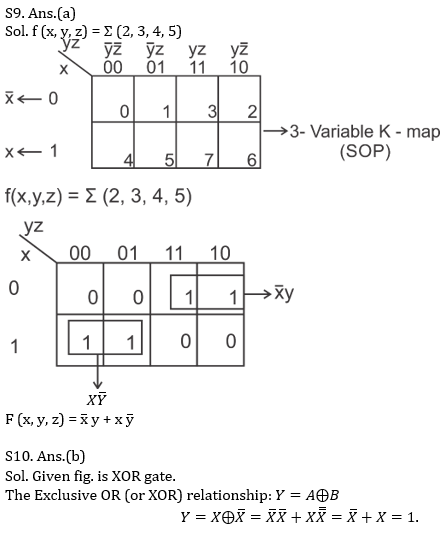

Q9. In the sum of product function
f(x,y,z)=Σ(2,3,4,5)
The prime implicants are-
(a) x ̅y+xy ̅
(b) x ̅y+xy ̅z ̅+xy ̅z
(c) x ̅yz ̅+x ̅yz+xy ̅
(d) x ̅yz ̅+x ̅yz+xy ̅z ̅+xy ̅z

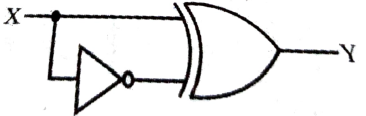

Q10. The output Y of the logic circuit given below is:

(a) 0
(b) 1
(c) X
(d)` X ̅

SOLUTIONS

S5. Ans.(a)

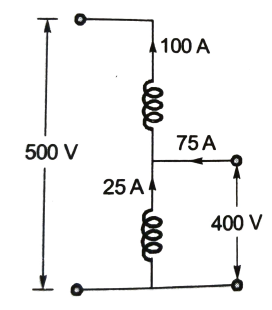

Sol. The auto transformer connections can be made as below:

I_P=(10×1000)/400=25A
I_S=400/100×25=100 A
Rating = 500 V × 100 A = 50 kVA

S6. Ans.(a)
Sol. %regulating = ((IRcosϕ+IXsinϕ))/I×100
==(%R cosϕ+%Xsinϕ)
Being a resistive load, 𝟇=0
% regulation = (3×cos0°+6×sin0°)=3%
=(3×200)/100=6V
Hence terminal voltage
= 200 – 6=194 V

S7. Ans.(b)
Sol. S is opened after long time. So, L behaves as short-circuit as soon as switch open.
R_1 ||R_2
∵V_R1=V\/R_1

S8. Ans.(c)
Sol. Since
Av = β×Rc/Rin = 10 × 2/1 = 20

×
