Quiz: Electrical Engineering 06 Jan 2021

Quiz: Electrical Engineering
Exam: SSC-JE
Topic: Miscellaneous

Each question carries 1 mark.
Negative marking: 1/4 mark
Time: 10 Minute

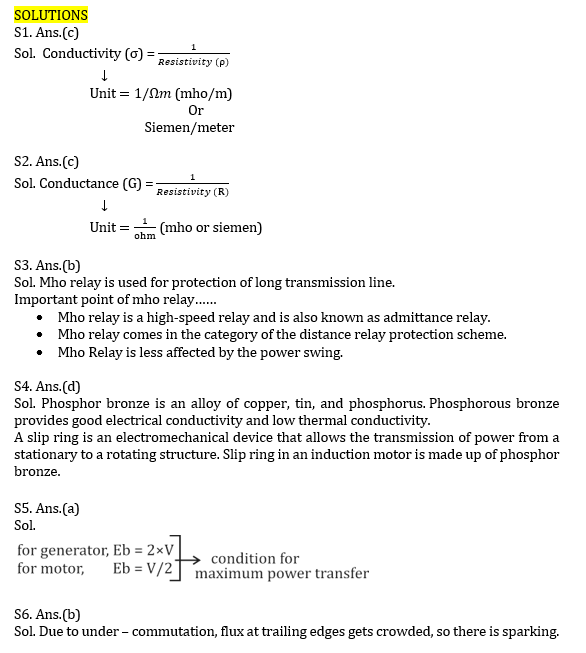

Q1. The SI unit of conductivity is:
(a) Ohm/meter
(b) Ohm-meter
(c) Siemens/meter
(d) Siemens – meter

Q2. The SI unit of conductance is:
(a) Coulomb
(b) Ohm
(c) Siemens
(d) Newton

Q3. A mho relay is used for protection of:
(a) Protection of a transformer against external fault
(b) Long Transmission Line
(c) Protection of a transformer against all the internal faults and external fault
(d) Medium Length lines

Q4. Slip ring of an induction motor is usually made up of
(a) Carbon
(b) Copper
(c) Aluminium
(d) Phosphor bronze

Q5. Condition for maximum power delivered in D.C. Generator is_______:
(a) Back EMF = (2 × Supply voltage)
(b) Back EMF = Supply voltage
(c) Back EMF = (Supply voltage/4)
(d) Back EMF = (Supply voltage/9)

Q6. Under-commutation gives rise to …….
(a) sparking at the leading edge of the brush
(b) sparking at the trailing edge of the brush
(c) no sparking at all
(d) sparking at the middle of the brush

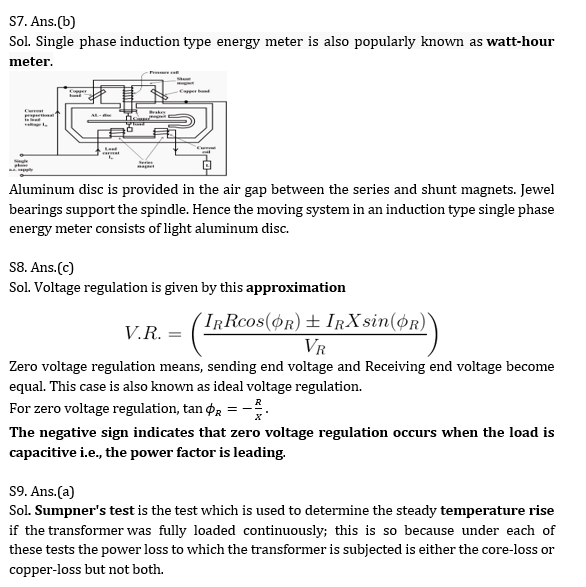

Q7. Moving system of the induction type single phase energy meter has _
(a) heavy aluminium disc
(b) light aluminium disc
(c) medium aluminium disc
(d) no aluminium disc

Q8. On which load power factor zero voltage regulation will be achieved?
(a) 0
(b) 1
(c) Leading
(d) Lagging

Q9. Sumpner’s test is conducted on transformers to study effect of __
(a) Temperature
(b) Stray losses
(c) All-day efficiency
(d) none of these

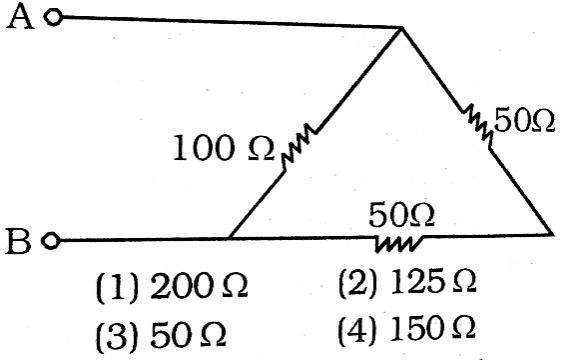

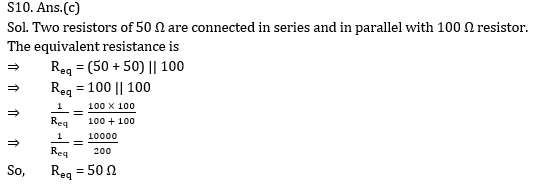

Q10. What will be the total resistance of the given circuit?

(a) 200 Ω
(b) 125 Ω
(c) 50 Ω
(d) 150 Ω

×
